Indexing tool for watchmakers lathe

Hello friends
Today I completed the indexing tool for the watchmakers lathe. I've had on my wish list making some very fine rope knurl wheels and in order to do this I needed to be able to very accurately index the chuck. Having recently completed the new stands for the lathe with the accessory mounting t-slots, it seemed a perfect opportunity to design the indexing set up around just that. Below are the results

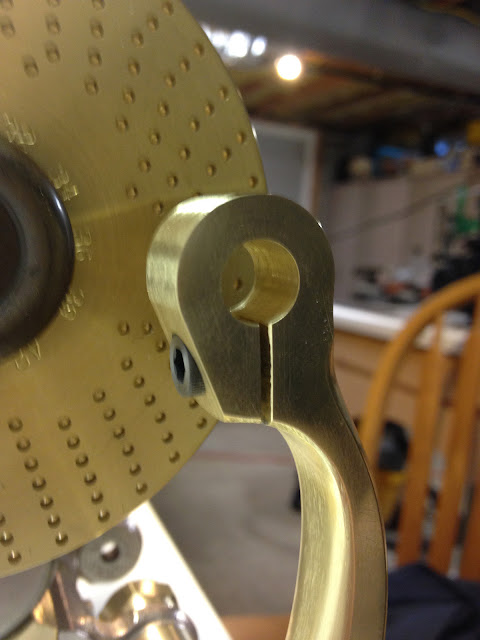

I had used the indexing pin and holes that come stock on the back of the headstock phenolic pulley. It's very hard to get light into there to insure a visual confirmation of inserting the pin into the right hole. I designed this new unit to put the pin on the back of the indexing plate and I put the pin support arm out far enough for good light and good visual line of sight.

I designed and 3D modeled the mounting tabs that use a 1/4-20 bolt to slide into the T-slots. You can see the mounting here.

I also developed the indexing pin as a spring loaded assembly. The insid…
